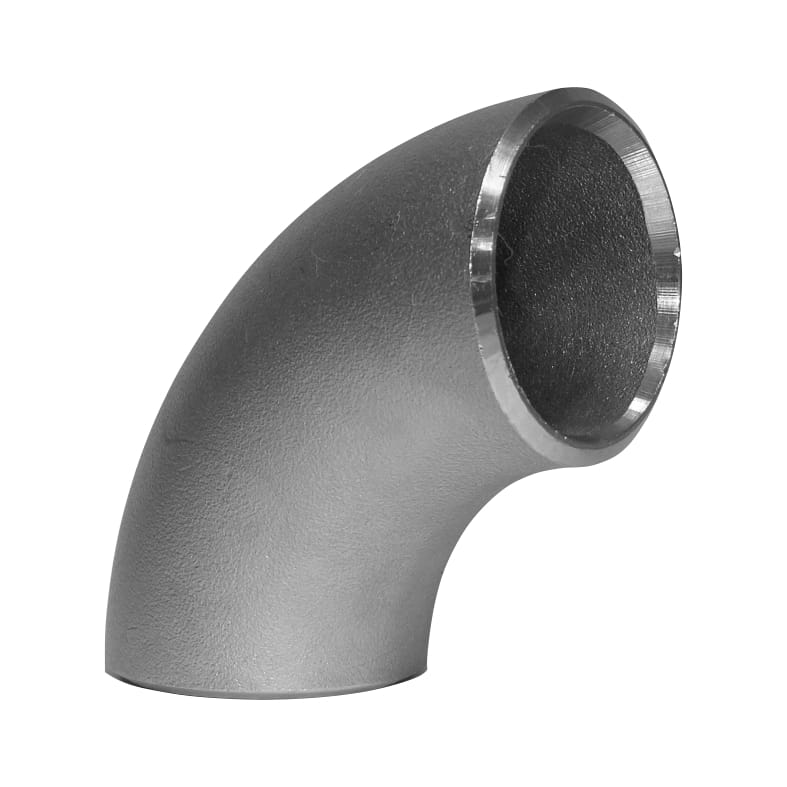

Elbows are essential components in piping systems, enabling smooth changes in direction while maintaining system integrity and flow efficiency. They are extensively used in industrial, commercial, and residential piping applications, including oil and gas, petrochemical, water treatment, chemical processing, and HVAC systems. Elbows are manufactured in various materials such as stainless steel, carbon steel, alloy steel, copper, brass, and specialty metals to ensure compatibility with different media, pressure ratings, and temperature conditions.
The common types of elbows include 90° elbows, 45° elbows, 180° return bends, long-radius elbows, and short-radius elbows, each designed to handle specific flow dynamics. The radius of the elbow affects pressure drop and flow turbulence; long-radius elbows are preferred in systems requiring minimal flow resistance, while short-radius elbows are ideal for compact piping layouts.
Elbows are available in multiple connection types including butt weld, socket weld, threaded, flanged, and slip-on connections to accommodate different installation requirements. Butt weld elbows are widely used in high-pressure and high-temperature systems due to their strength and leak-proof joints, while socket weld and threaded elbows are preferred in smaller diameter pipelines. Flanged elbows provide the advantage of easy assembly and disassembly for maintenance purposes.
The manufacturing of elbows follows stringent international standards such as ASTM, ASME, ANSI, DIN, BS, and EN to guarantee dimensional accuracy, mechanical properties, and corrosion resistance. Materials like Stainless Steel 304/304L/304H/304LN, Carbon Steel, Alloy Steel, Duplex, Super Duplex, Inconel, Monel, and Copper are carefully chosen to meet the environmental and chemical requirements of the system. Each elbow is tested for pressure, hardness, and dimensional tolerances to ensure reliability in demanding industrial operations.
In addition to material and type, elbows are also categorized based on size, wall thickness, end preparation, and pressure class, allowing engineers and designers to select the appropriate component for their piping layout. Proper selection of elbow type and material significantly improves system longevity, reduces maintenance, and enhances safety.
Overall, elbows are indispensable in modern piping systems, providing flexibility, efficiency, and durability across industries. Their wide range of materials, types, and sizes ensures that pipelines function smoothly under various operating conditions, making them an essential part of any piping infrastructure.
| Material | Type | Angle | Connection | Standard | Size Range (OD) | Wall Thickness | Pressure Rating |
|---|---|---|---|---|---|---|---|
| Stainless Steel 304/304L/304H/304LN | Elbow | 45°, 90°, 180° | Butt Weld, Socket Weld, Threaded, Flanged | ASTM A403, ASME B16.9 | 6 mm – 610 mm | 0.5 mm – 50 mm | 150 – 3000 lbs |
| Carbon Steel (CS) | Elbow | 45°, 90°, 180° | Butt Weld, Socket Weld, Flanged | ASTM A234, ASME B16.9 | 6 mm – 610 mm | 0.5 mm – 50 mm | 150 – 2500 lbs |
| Alloy Steel | Elbow | 45°, 90°, 180° | Butt Weld, Flanged | ASTM A234 WPB/WPC, ASME B16.9 | 6 mm – 610 mm | 0.5 mm – 50 mm | 150 – 2500 lbs |
| Duplex / Super Duplex | Elbow | 45°, 90°, 180° | Butt Weld, Flanged | ASTM A403, ASME B16.9 | 6 mm – 610 mm | 0.5 mm – 50 mm | 300 – 2500 lbs |
| Inconel / Monel | Elbow | 45°, 90°, 180° | Butt Weld, Flanged | ASTM B366, ASME B16.9 | 6 mm – 610 mm | 0.5 mm – 50 mm | 300 – 3000 lbs |
| Copper / Brass | Elbow | 45°, 90° | Socket Weld, Threaded | ASTM B75 / B16.22 | 6 mm – 200 mm | 0.5 mm – 10 mm | 150 – 600 lbs |
